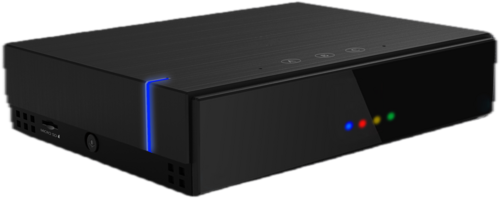

DroidLogic Developer Kit (S905X4-B/K)

codename: ohm

Variants

There are multiple variants of this device. Make sure you’re viewing the right one.

Downloads

Get the builds here

Guides

Special boot modes

  • Bootloader/Fastboot/Download: With the device unplugged, connect USB-C to your host machine, then connect power to the device while holding the Reset Button (rear of device) until the DroidLogic logo appears on screen, then on your host run “fastboot reboot bootloader”.
  • Burn Mode: With the device unplugged, connect USB-C to your host machine, then connect power to the device while holding the USB Boot Button (bottom of device) until the device enumerates on your host machine.

Known quirks



DroidLogic Developer Kit (S905X4-B/K) (ohm)
Released September 01, 2023
Specifications
SoC Amlogic S905X4
RAM 1/2 GB
CPU Quad-core Cortex-A55
2.0 GHz
Architecture CPU: arm64
Android: arm
GPU ARM Mali-G31 MP2
Storage 16 GB
Bluetooth 5.0
Wi-Fi 802.11 a/b/g/n/ac
Peripherals
  • 3.5mm jack
  • HDMI
  • IR blaster
  • RJ45 Ethernet port
  • USB OTG
Dimensions 50.8 mm (2 in) (h)
177.8 mm (7 in) (w)
127 mm (5 in) (d)
LineageOS info
Maintainer
  • npjohnson
Current version
  • 23.2 (Android 16)
Kernel version
Wiki metadata
